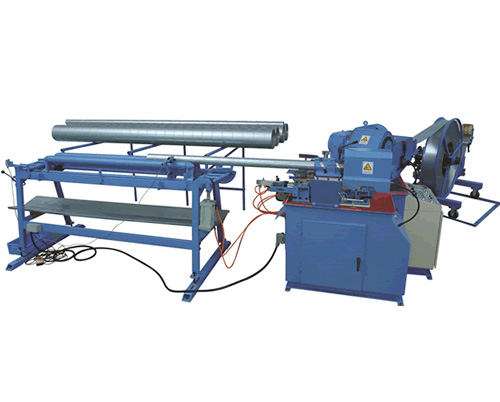

飞剪螺旋风管机SBTF-1602




产品描述
The module technique gives the customer the possibility to choose
between a number of options, allowing him to create a machine a number of options, allowing him to create a machine for his specific needs.
The frequency controlled main drive ensures a smooth acceleration and an almost noiseless operation.
The outstanding patented flying slitter cuts the tubes to lengthwithout noise or hot sparks as known from the saws and provides smooth tube ends without deburring.
The design and options fulfill the needs in HVAC to produce in mild steel, galvanized steel, stainless steel or aluminum
The corrugation unit allows a reduction in material costs and makes the bigger diameter tubes more rigid.

技术参数

直径Diameter range

¢80 mm – ¢1600mm

厚度范围Thickness range

镀锌板galvanised steel  0.4 -1.3mm

不锈钢stainless steel  0.8mm

铝  板aluminium  0.4-1.3mm

料宽Strip width

厚度达1.3mm, 标准宽度为137mm, 在要求范围内可以达140mm

咬口Lockseam

外咬口,可按要求在内部咬口

工作速度Production speed

最大切割速度60米/分,视材料而定

切割方式 Cutting system

飞速切割

重量Weight

2900kg

外形尺寸Dimension

2000 mm×1800 mm×1500mm
